Product Overview
The Huepar S-Series includes professional laser distance meters available with or without Bluetooth connectivity.
Bluetooth Models
Section titled “Bluetooth Models”With Bluetooth (S60-BT, S80-BT, S100-BT, S120-BT):
- Connect to your phone via the Huepar app
- Real-time sync of measurements
- Remote control capability
- Cloud data storage
Without Bluetooth (S60, S80, S100, S120):
- No app or Bluetooth needed
- Use built-in buttons for all measurements
- Local data logging (30 measurements)

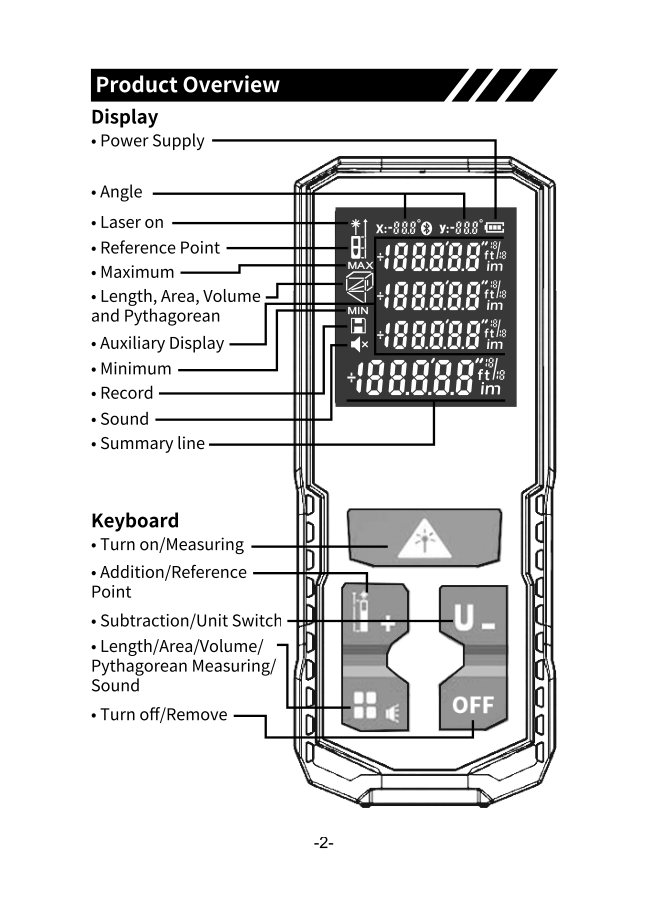

Device Layout
Section titled “Device Layout”
Display Elements
Section titled “Display Elements”| Element | Description |
|---|---|
| Power Supply | Battery level indicator |
| Angle | X/Y angle display (±90°) |
| Laser On | Indicates active laser beam |
| Reference Point | Shows measurement origin (end/middle/front) |
| Maximum/Minimum | Values during continuous measurement |
| Mode Icons | Length, Area, Volume, Pythagorean |
| Auxiliary Display | Secondary measurement data |
| Record | Data storage indicator |
| Sound | Buzzer on/off indicator |
| Summary Line | Primary measurement result |
Button Controls
Section titled “Button Controls”| Button | Short Press | Long Press |
|---|---|---|
| A (Measure) | Turn on / Single measurement | Continuous measurement (>3s) |
| + | Addition mode | Change reference point |
| U- | Subtraction mode | Unit setting (≥2s) / Sound toggle (≥3s) |
| Mode | Cycle measurement modes | — |
| OFF | Clear/Back | Power off (≥3s) |
